Junction Box

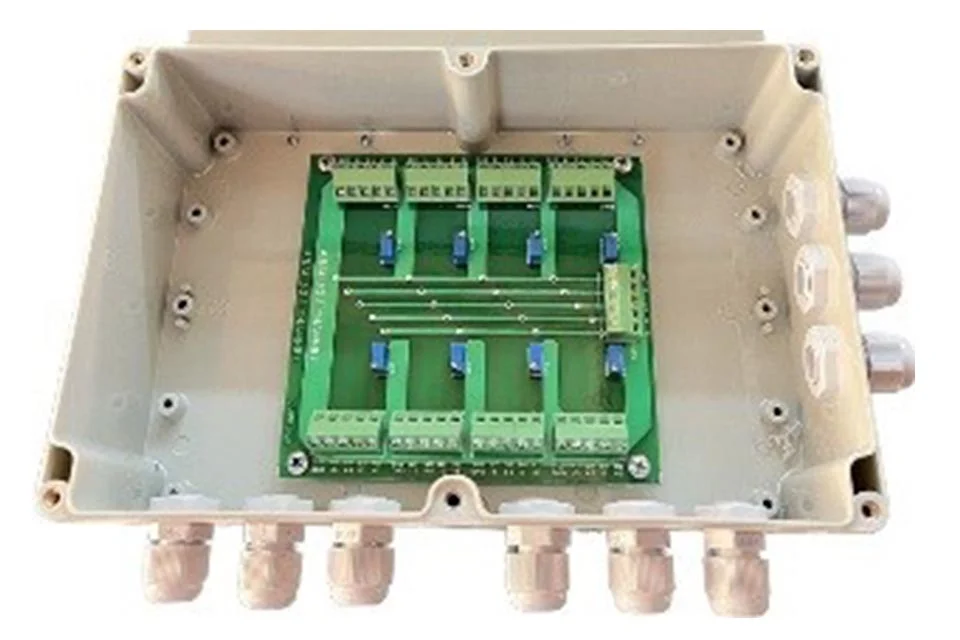

Analog Load Cell Junction Box

The accuracy and performance of weighbridge does not only depend only on quality and performance of fabrication & structure, load cells and intelligent terminal but also on a vital but often unnoticed component, junction box. These junction boxes are designed to be used in all kinds of industrial weighing applications. The junction boxes integrate the high-quality components to ensure the best possible performance.

Salient Features

  • It comes with up to 8 load cell connection

  • Corner trimming by high long term stable components

  • ABS plastic body with IP65 protection

  • Easy eccentricity adjustment

  • Do not distort the signal balance of the matched load cells

Application/Usage

  • Electronic Weighbridge
  • Heavy duty scales
  • Hoppers
  • Silo and Tank weighing systems

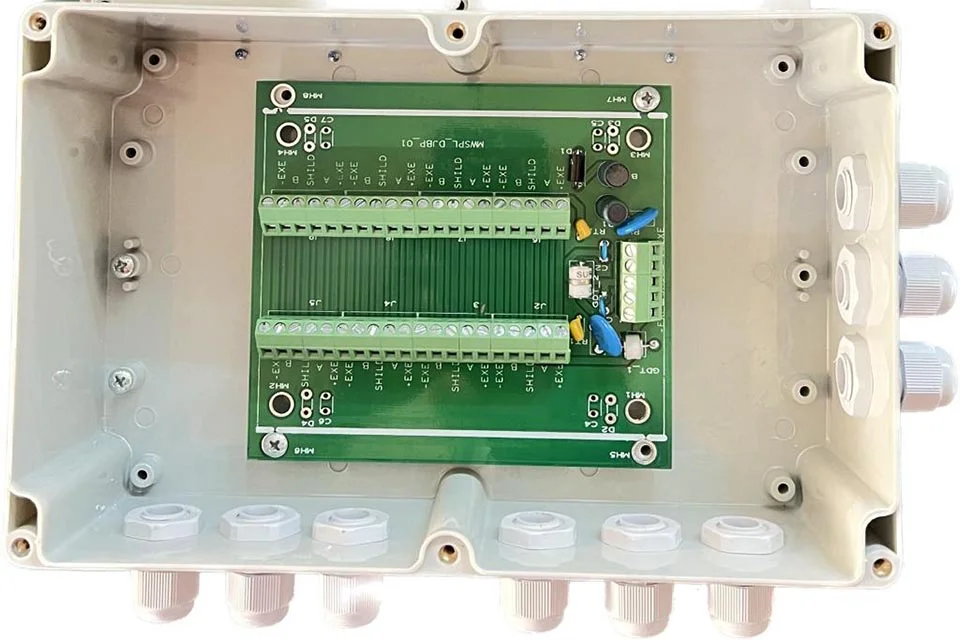

Digital Load Cell Junction Box

These junction boxes have been designed to easeconnection of digital load cells with weighing systems. The internal high-precision digital measuring amplifier with 24-bit A / D converter converts the output signals of the connected load cells into a stable weight value.These junction boxes integrate the high-quality components to ensure the best possible performance.

Salient Features

  • Available for a maximum of 8 load cells assembly

  • Comes in strong ABS body

  • Protects digital load cells and associated equipment

  • With digital equalization, no trim pots are required to adjust or drift over time

  • Fault monitoring of the weighing system’s load cells

Application/Usage

  • Weighbridge
  • High-capacity truck scales
  • Belt Weighing System
  • Hopper Weighing
